Shenzhen U solution i-EDM measurement software is an independent software developed based on the open-source software AnyCAD, which is based on the Open SDK library. It can conveniently read in file formats such as STP and IGES. The operation is easy. It can output the measurement programming file format needed by spark machine and CNC measurement, and a 2D/3D measurement report can be produced after the measurement is completed. It is convenient for users to inspect

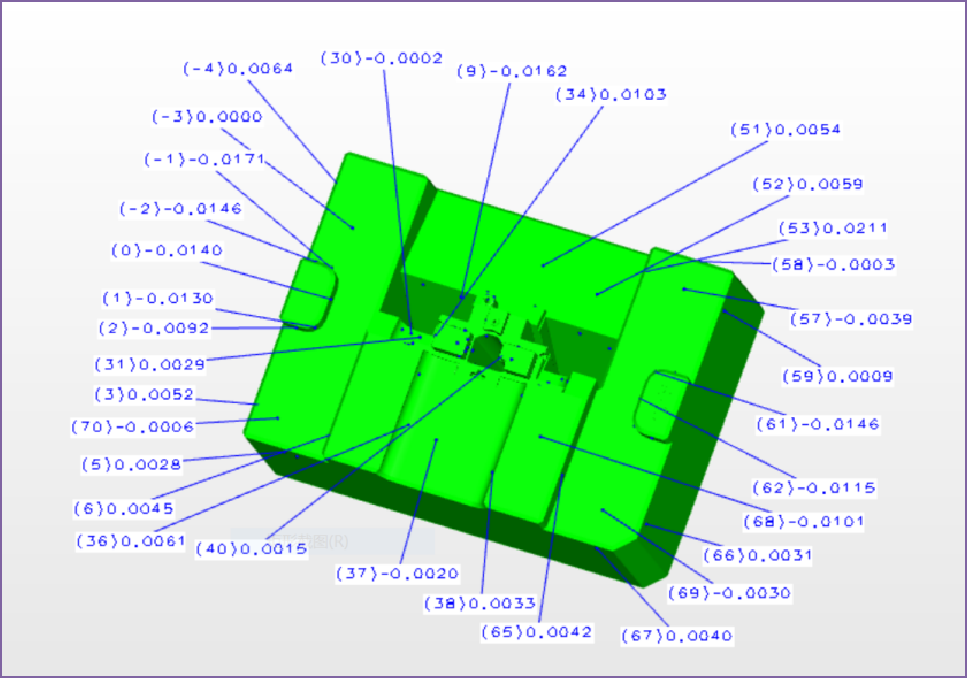

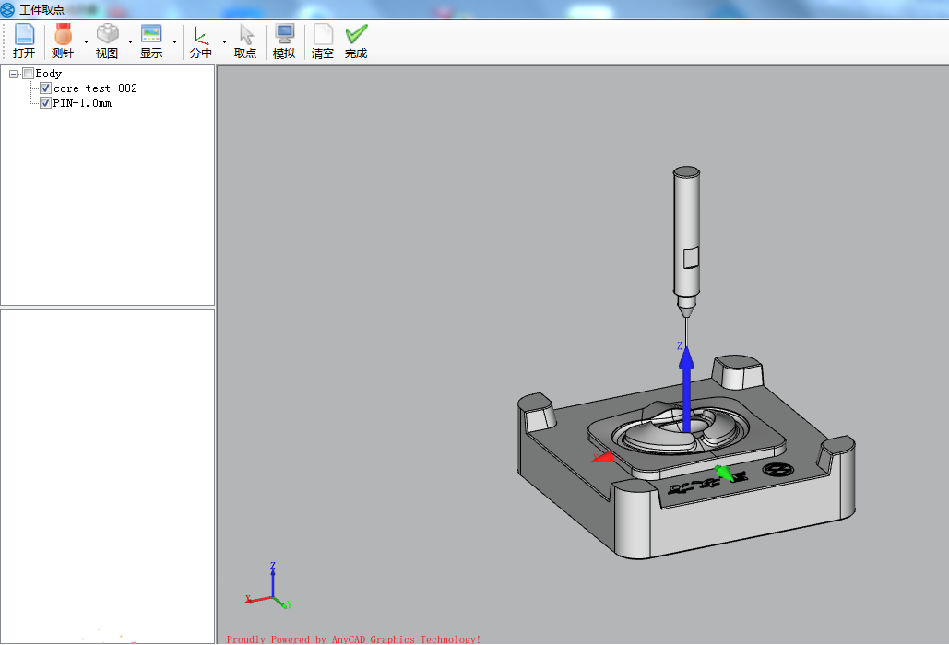

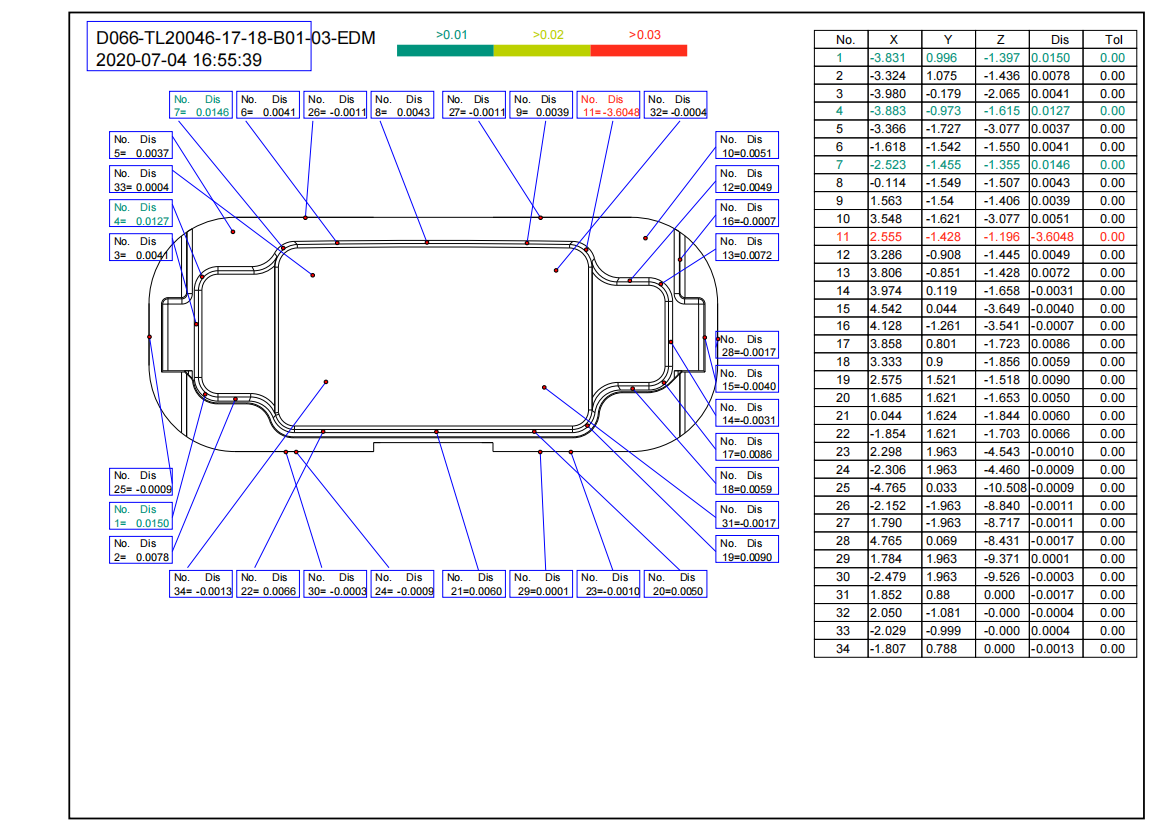

1.Self-developed dotting software 2.3D Report 3.2D Report

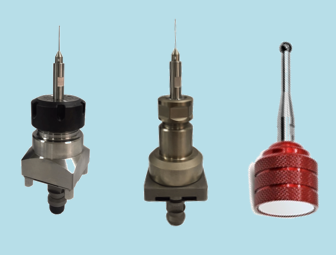

4.EDM PROBE Specification
High hardness tungsten steel grinded.
Ball roundness G10 grade.
Min. 0.30mm probe diameter.

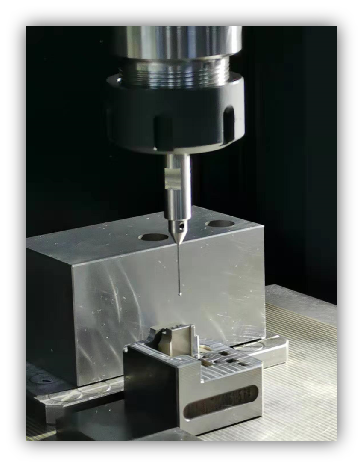

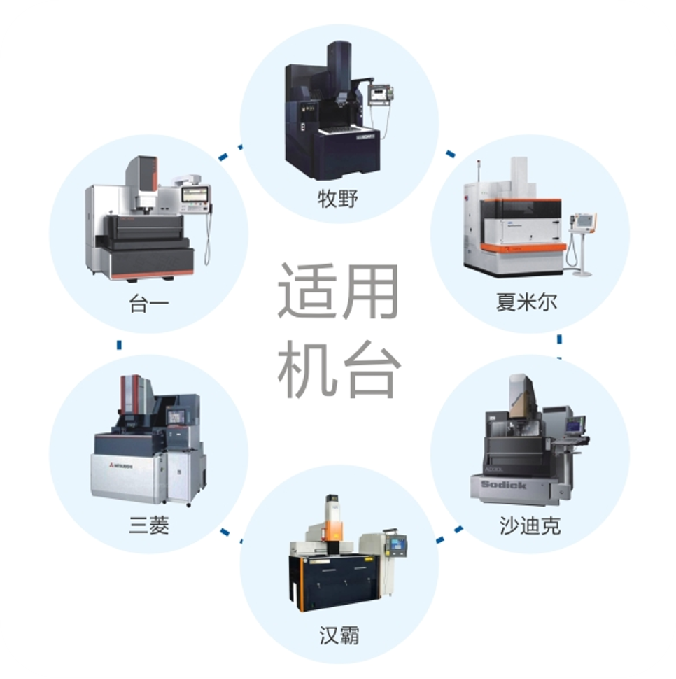

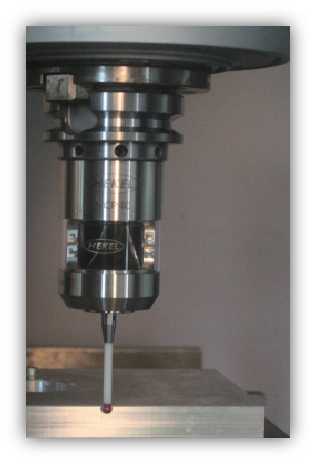

Accuracy of ±3µm 5.i-EDM Application Platform 6.i-cnc Application Platform

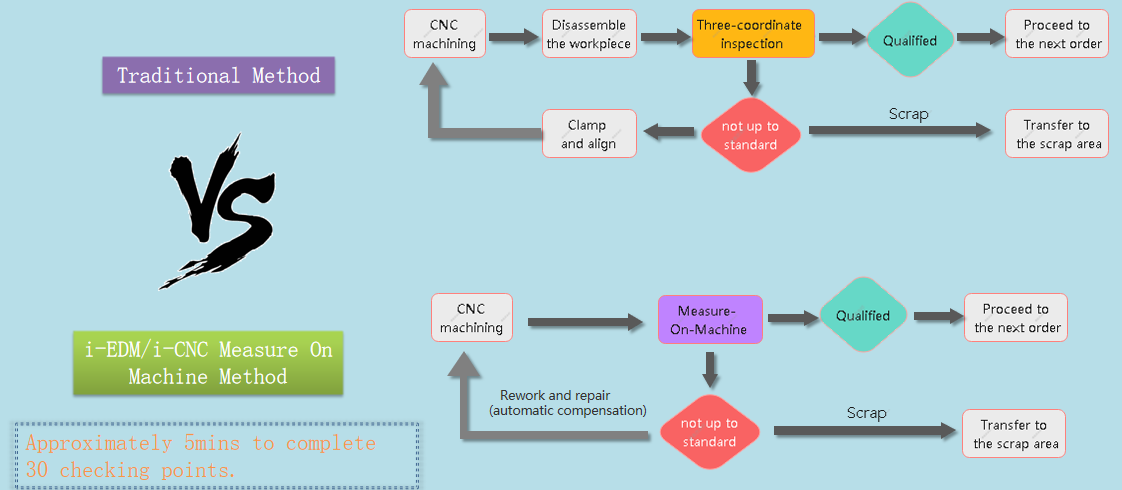

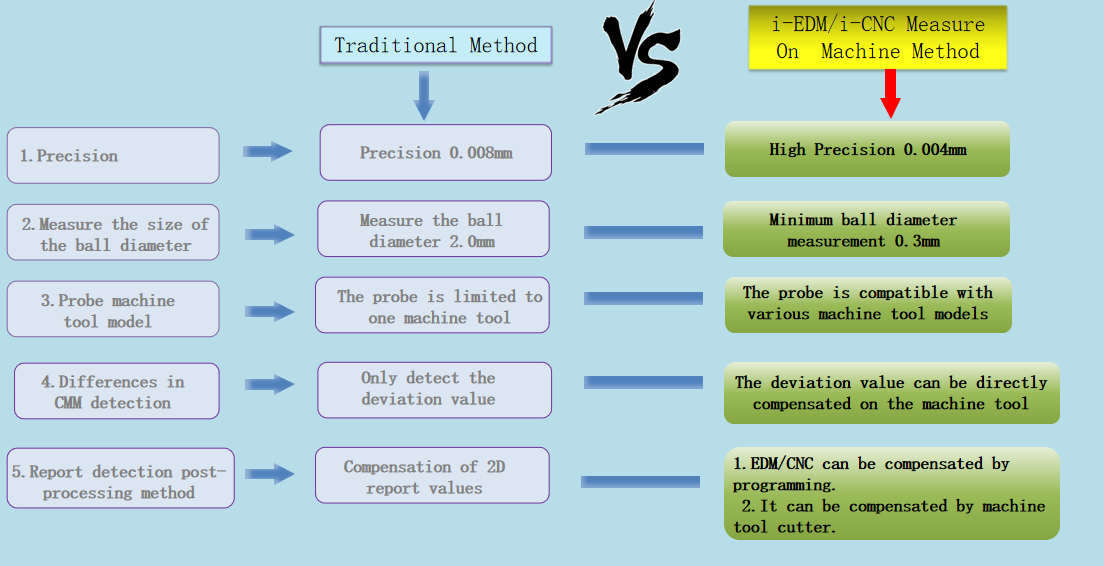

7.Time saving from reloading and setting 8.Comparison between tradition and intelligence
of workpiece repeatedly
